Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
Body, standard
Brake/transmission shift interlock for automatic transmissions
Brakes, 4-wheel antilock, 4-wheel disc
Engine, Vortec 4.8L V8 SFI (280 hp [208.8 kW] @ 5200 rpm, 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (Standard on the *G33503 and *G33803 models. With *G33503 requires (C4M) 9900 lbs. (4490 kg) GVWR or (C7A) 10,000 lbs. (4536 kg) GVWR. With *G33803 model requires (C7A) 10,000 lbs. (4536 kg) GVWR. Not available on the *G33903 model. Not available w
Exhaust, aluminized stainless-steel muffler and tailpipe
Frame, ladder-type
Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
GVWR, 9900 lbs. (4490 kg) (Standard on the *G33503 model. Requires (R04) single rear 4-16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with (R05) gray-painted steel (dual rear) wheels.)
Incomplete vehicle certification
Rear axle, 3.42 ratio (Included and only available with *G33503 model and (L20) Vortec 4.8L V8 SFI engine or (L96) Vortec 6.0L V8 SFI engine and (C4M) 9900 lbs. (4490 kg) GVWR.)
Rear Axle, 3.73 Ratio (Standard on *G33803 model and *G33903 model. With *G33503 model, requires (C7A) 10,000 lbs. (4536 kg) GVWR or (C7N) 12,300 lbs. (5579 kg) GVWR or (YF2) Ambulance Package. Reference the Engine/Axle page for availability.)
Rear wheel drive
Steering, power
Suspension, front independent with coil springs and stabilizer bar
Suspension, rear hypoid drive axle with multi-leaf springs
Tow/haul mode selector, instrument panel-mounted
Transmission oil cooler, external
Transmission, 6-speed automatic, heavy-duty electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (Reference the Engine/Axle page for availability.)
Bumper, front painted Black with step-pad (Not available with (ZR7) Appearance Package or (YF1) RV Package.)
Daytime Running Lamps
Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
Glass, Solar-Ray light-tinted, all windows
License plate kit, front
Mirrors, outside delete
Tires, front LT245/75R16E all-season, blackwall (Requires *G33503 model. Not available with (R05) dual rear, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Jack and spare tire equipment bracket are not included on G33*03 models.)
Tires, rear LT245/75R16E all-season, blackwall (Requires *G33503 model. Not available with (R05) dual rear, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Jack and spare tire equipment bracket are not included on G33*03 models.)
Wheels 16" x 6.5" (40.6 cm x 16.5 cm) steel (Only available with (R04) gray-painted steel (single rear) wheels.)
Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) Gray-painted steel (single rear) (Requires (C4M) 9900 lbs. (4491 kg) GVWR. Not available with (R05) dual rear, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels, (C7A) 10,000 lbs. (4536 kg) GVWR, (C7N) 12,300 lbs. (5579 kg) GVWR.)
Wipers, front intermittent wet-arm with pulse washers
Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer, and maintenance reminders. Compass and outside temperature available if equipped.
Floor covering, Black rubberized-vinyl front
Headliner, cloth, over driver and passenger
Heater and defogger with front and side window defoggers
Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
Lighting, interior with dome light and door handle-activated switches
Oil life monitor
Power outlets 2 auxiliary on engine console cover with covers, 12-volt
Seating arrangement, driver and front passenger highback bucket, adjustable includes head restraints and vinyl or cloth trim
Seats, front bucket with vinyl trim and outboard head restraints (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats.)
Air bag deactivation switch, frontal, passenger-side (Never place a rear- facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size. See the vehicle's Owners Manual and child safety seat instructions for more safety informa
Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety s
Tire Pressure Monitor System (does not apply to spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR or (9E9) 8600 lbs. (3901 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with *G33803 models or *G33903 models.)

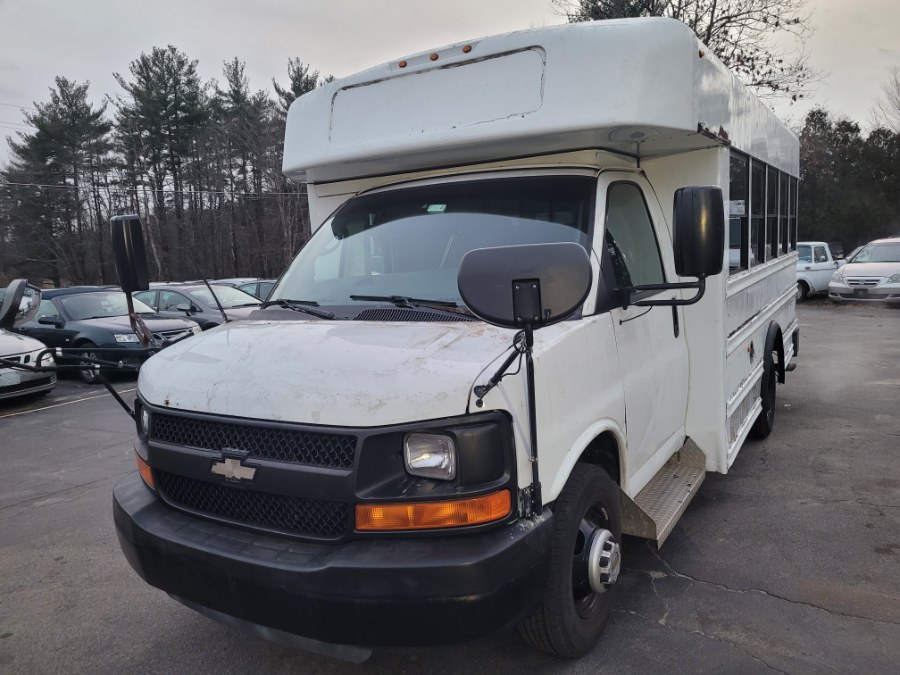

Pictures of used 2010 Chevrolet Express Commercial Cutaway RWD 3500 139" WB Work Van in Auburn, NH
